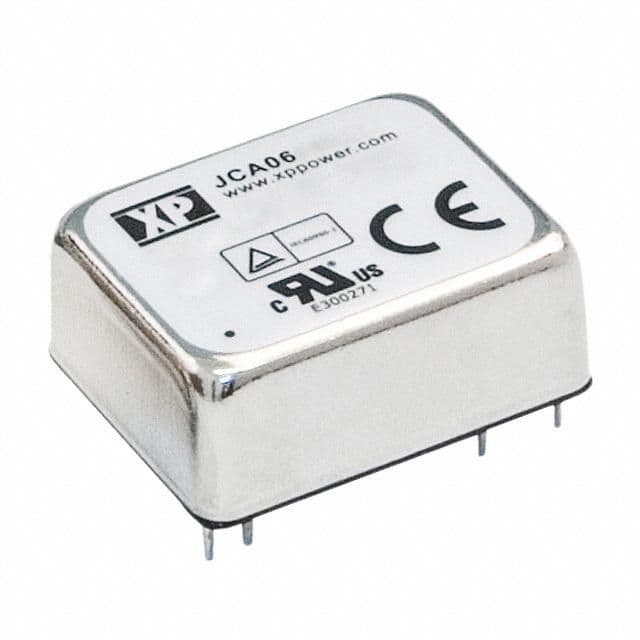

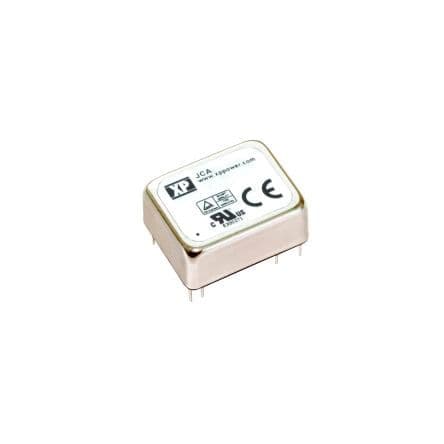

JCA0624S05

5V 1A 6W DC-DC Converter, 18-36VDC In, 1.5kV Isolation, Through Hole

5W DC-DC regulated power supply module with a single 5V output, delivering 1A of current. Features include 1.5kV isolation, wide 18-36V DC input range, and a maximum output power of 6W. Operates efficiently at 82% and includes over-voltage, over-current, short-circuit, and under-voltage lockout protection. This hybrid module is designed for PCB mounting with a compact 1-inch length, 0.8-inch width, and 0.39-inch height, suitable for operation between -40°C and 100°C.

MountingThrough Hole, PCB

Power6W

Quick Jump:

Technical Specifications

XP Power JCA0624S05 technical specifications.

General

Current - Output 1	1A
Depth	25.4mm
Efficiency	82%
Features	UVLO, OVP, OCP, SCP
Height	0.39inch
Isolation Voltage	1.5kV
Length	1inch
Max Input Voltage (DC)	36V
Min Input Voltage (DC)	18V
Max Input Voltage	36V
Min Input Voltage	18V
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Current	1A
Max Output Power	6W
Max Power Dissipation	5W
Mount	Through Hole, PCB
Nominal Output Voltage	5V
Number of Outputs	1
Output Current	1A
Output Power	6W
Output Voltage	5V
Package Quantity	16
Packaging	Rail/Tube
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	JCA
Voltage - Output 1	5V
Width	0.8inch
