30W DC-DC regulated power supply module, board mount, DIP package, featuring dual 12V and -12V outputs, each with 1.25A maximum current. This hybrid converter offers 90% efficiency, 1.5kV isolation voltage, and operates from a 9V to 18V DC input. Protection features include OVP, OCP, OTP, and SCP, with a wide operating temperature range of -40°C to 100°C. Dimensions are 40.64mm width, 50.8mm depth, and 10.2mm height, with a weight of 48g.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
XP Power JCL3012D12 technical specifications.
General
Package/Case
DIP
Current - Output 1
1.25A
Current - Output 2
1.25A
Depth
50.8mm
Efficiency
90%
Features
OVP, OCP, OTP, SCP
Height
10.2mm
Isolation Voltage
1.5kV
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
1.25A
Max Output Power
30W
Max Power Dissipation
30W
Mount
Through Hole
Nominal Output Voltage
-12V
Number of Outputs
2
Operating Supply Voltage
12V
Output Current
1.25A
Output Voltage
12V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
JCL30 (30W)
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
48g
Width
40.64mm
Compliance
RoHS
Compliant
Datasheet
XP Power JCL3012D12 Datasheet
Download the complete datasheet for XP Power JCL3012D12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

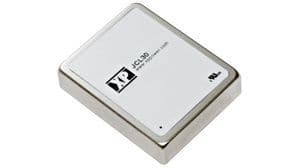

Product Images
