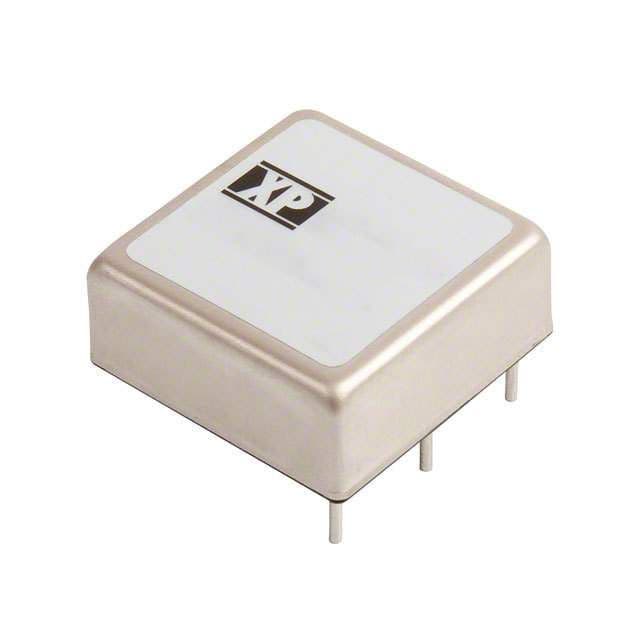

15W DC-DC regulated power supply module featuring dual outputs of 12V and -12V, each delivering 625mA. This hybrid, board-mount converter operates from an 18V to 36V DC input, with a nominal input of 24V. Boasting 88% efficiency and 1.6kV isolation voltage, it includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). The module is housed in a DIP package with dimensions of 1 x 1 x 0.39 inches, designed for through-hole PCB mounting, and operates across a wide temperature range of -40°C to 105°C.
PackageDIP
MountingThrough Hole, PCB
Power15W
Quick Jump:
Technical Specifications
XP Power JCM1524D12 technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 625mA |
| Current - Output 2 | 625mA |
| Depth | 25.4mm |
| Efficiency | 88% |
| Features | OVP, OCP, SCP |
| Height | 0.39inch |
| Isolation Voltage | 1.6kV |
| Length | 1inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 625mA |
| Max Output Power | 15W |
| Max Power Dissipation | 15W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | -12V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 24V |
| Output Current | 625mA |
| Output Power | 15W |
| Output Voltage | 12V |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | JCM |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 1inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power JCM1524D12 Datasheet
Download the complete datasheet for XP Power JCM1524D12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
