XP Power
WD201
XP POWER WD201 Isolated Board Mount DC/DC Converter, Input Pi Filter, Fixed, 1 Output, 18 V, 36 V, 15 W, 5 V
Quick Jump:
Technical Specifications
XP Power WD201 technical specifications.
General
Current - Output 1
3A
Depth
50.8mm
Efficiency
78%
Features
SCP
Height
10.2mm
Isolation Voltage
500V
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
18V
Max Input Voltage
36V
Min Input Voltage
18V
Max Output Current
3A
Max Output Power
15W
Max Power Dissipation
15W
Nominal Output Voltage
5V
Number of Outputs
1
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
WD (15W)
Voltage - Output 1
5V
Width
25.4mm
Compliance
RoHS
Not Compliant
Datasheet
XP Power WD201 Datasheet
Download the complete datasheet for XP Power WD201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

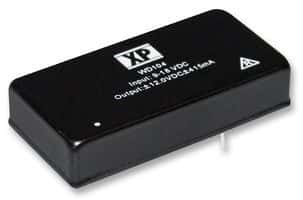

Product Images
