![SMD Chip Resistor, 1 kOhm, ± 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose](https://static.datasheets.com/image/29627369-yageo-ac1206fr-071kl-image.jpg)
Yageo
AC1206FR-071KL
SMD Chip Resistor, 1 kOhm, ± 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose
Package1206
Resistance1kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Yageo AC1206FR-071KL technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Features | Moisture Resistant, Automotive AEC-Q200 |
| Height | 0.026inch |
| Length | 0.122inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Resistance | 1kR |
| RoHS Compliant | Yes |
| Series | AC |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 200V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo AC1206FR-071KL Datasheet
Download the complete datasheet for Yageo AC1206FR-071KL to view detailed technical specifications.
No datasheet is available for this part.

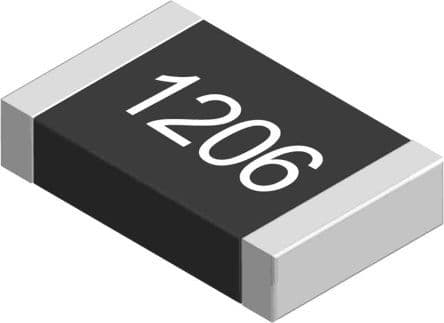

Product Images
