This 200V SMD/SMT chip resistor from Yageo features a 4.7kR resistance value with a 5% tolerance. It has a maximum power dissipation of 250mW and operates over a temperature range of -55°C to 155°C. The resistor is packaged in a 1206 case, suitable for surface mount applications, and is compliant with RoHS regulations. It is also moisture resistant and meets the automotive AEC-Q200 standard.
Package1206
Resistance4.7kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Yageo AC1206JR-074K7L technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Features | Moisture Resistant, Automotive AEC-Q200 |
| Height | 0.026inch |
| Length | 0.122inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Resistance | 4.7kR |
| RoHS Compliant | Yes |
| Series | AC |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 200V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo AC1206JR-074K7L Datasheet
Download the complete datasheet for Yageo AC1206JR-074K7L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

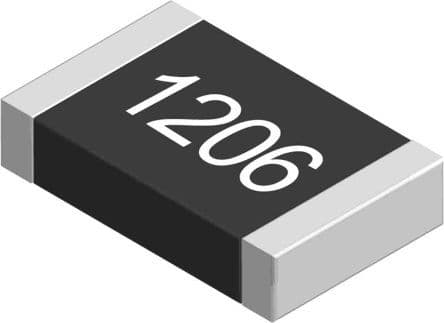

Product Images
