Technical Specifications
Yageo CC1206KKX7RDBB152 technical specifications.
General
| Capacitance | 1.5nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Thickness | 0.057inch |
| Tolerance | 10% |
| Voltage Rating | 2kV |
| DC Rated Voltage | 2kV |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC1206KKX7RDBB152 Datasheet
Download the complete datasheet for Yageo CC1206KKX7RDBB152 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

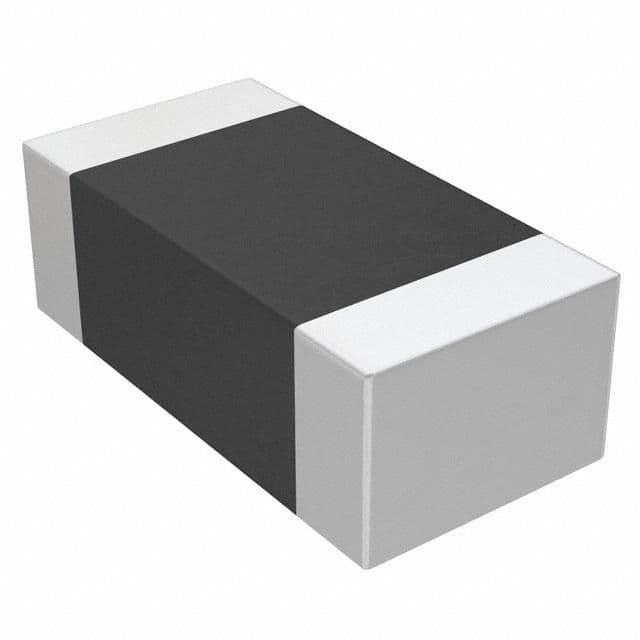

Product Images
