Quick Jump:
Technical Specifications
Yageo CC1206KRX7R7BB394 technical specifications.
General
| Capacitance | 390nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Series | CC |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC1206KRX7R7BB394 Datasheet
Download the complete datasheet for Yageo CC1206KRX7R7BB394 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

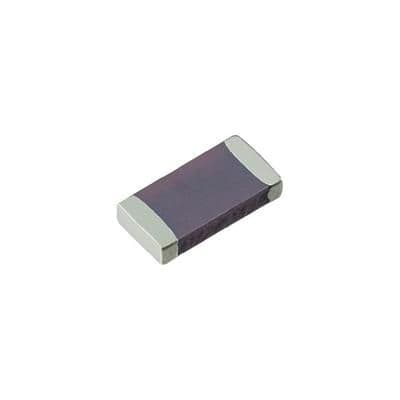

Product Images
