Multilayer ceramic capacitor, 1nF capacitance, 50V voltage rating, and 10% tolerance. Features X7R dielectric material and a 1206 [3216 Metric] case code for surface mount applications. Operating temperature range is -55°C to 125°C. This component is RoHS and Halogen Free compliant.
Package1206
Voltage50V
Capacitance1nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo CC1206KRX7R9BB102 technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Halogen Free | Halogen Free |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC1206KRX7R9BB102 Datasheet
Download the complete datasheet for Yageo CC1206KRX7R9BB102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

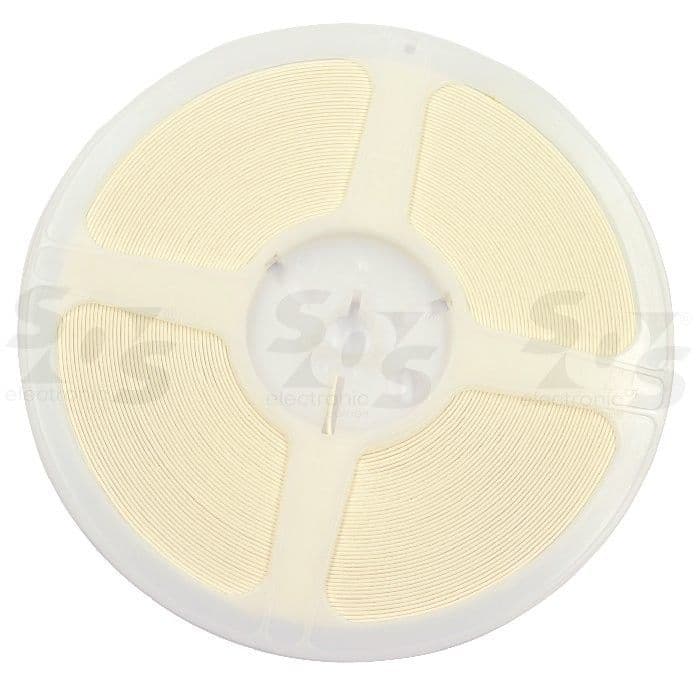

Product Images
