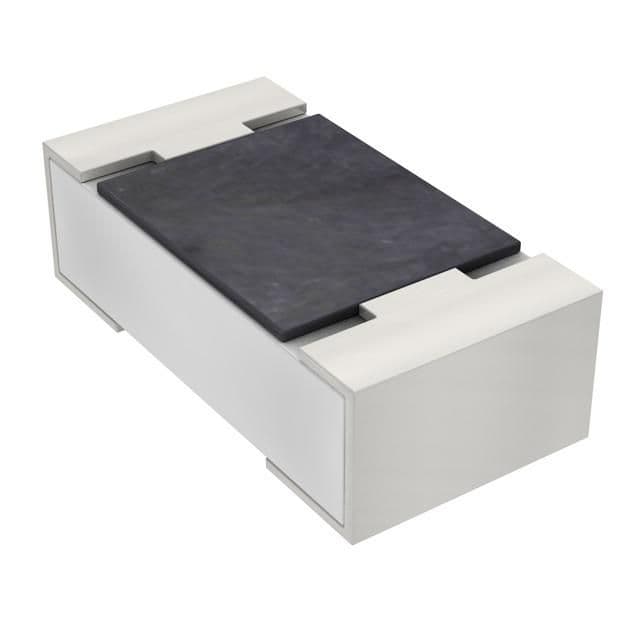

![SMD Chip Resistor, 3.6 kOhm, ± 5%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose](https://static.datasheets.com/image/14212437-yageo-rc0402jr-073k6l-image.jpg)
Quick Jump:
Technical Specifications
Yageo RC0402JR-073K6L technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Contact Plating | Tin, Matte |
| Features | Moisture Resistant |
| Height | 0.35mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Resistance | 3.6kR |
| RoHS Compliant | Yes |
| Series | RC |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
| Working Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0402JR-073K6L Datasheet
Download the complete datasheet for Yageo RC0402JR-073K6L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
