20 Ohm, 1% tolerance thick film chip resistor in a 0603 (1608 metric) SMD package. Features a 1/10W (100mW) maximum power dissipation and a wide operating temperature range of -55°C to +155°C. This moisture-resistant, lead-free component offers a 50V DC rated voltage and is supplied in tape and reel packaging.
Package0603
Resistance20R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603FR-0720RL technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Depth | 0.8mm |
| Features | Moisture Resistant |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 20R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.031inch |
| Working Voltage | 75V |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603FR-0720RL Datasheet
Download the complete datasheet for Yageo RC0603FR-0720RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

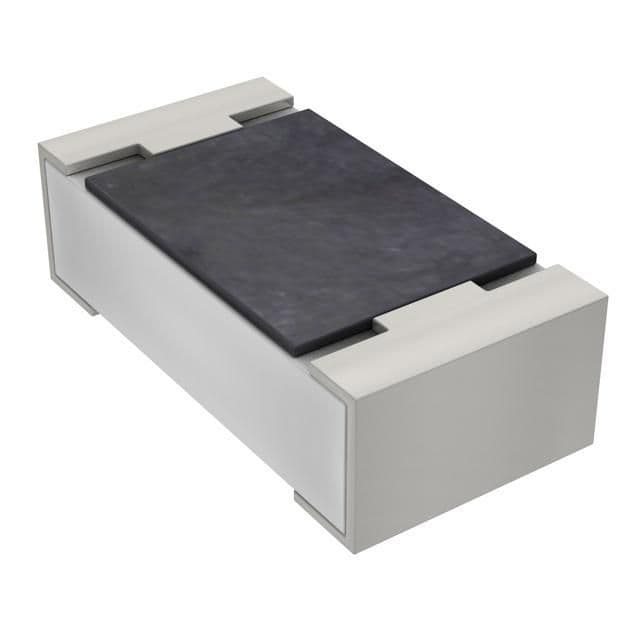

Product Images
