SMD chip resistor with 8.2kR resistance and 1% tolerance. Features thick film technology in a 0603 (1608 metric) case code, rated for 1/10W (100mW) max power dissipation and 50V voltage. Operating temperature range is -55°C to 155°C, with moisture resistance and lead-free construction. Packaged on tape and reel.
Package0603
Resistance8.2kR
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603FR-078K2L technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Depth | 0.8mm |
| Features | Moisture Resistant |
| Height | 0.022inch |
| Lead Free | Lead Free |
| Lead Pitch | 0.3mm |
| Length | 0.063inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 8.2kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0603 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603FR-078K2L Datasheet
Download the complete datasheet for Yageo RC0603FR-078K2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

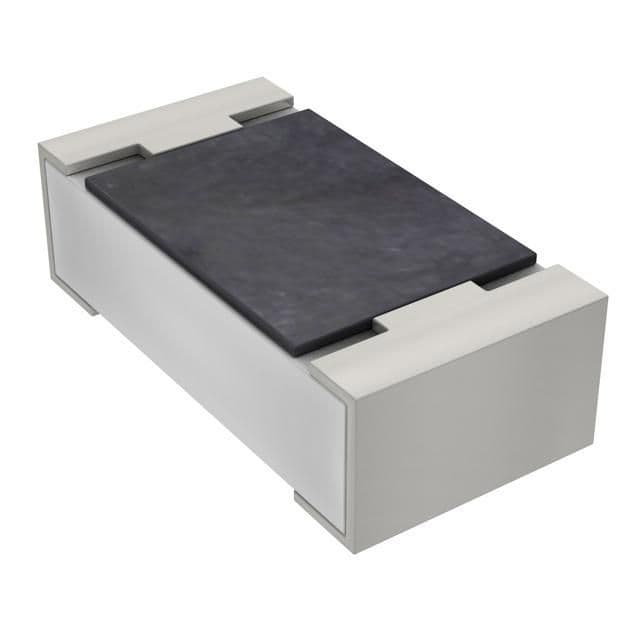

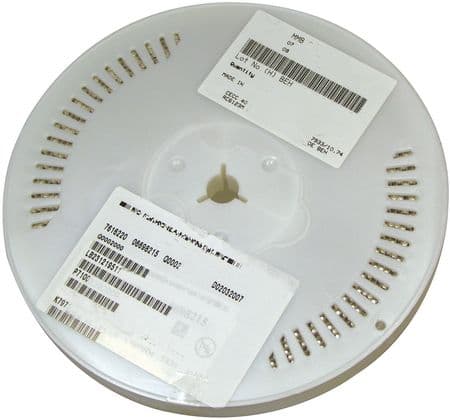

Product Images
