100 Ohm, 5% tolerance thick film chip resistor in a 0603 (1608 metric) SMD/SMT package. Features 1/10W (100mW) power dissipation, 50V voltage rating, and a wide operating temperature range of -55°C to +155°C. Constructed with tin, matte contact plating and is RoHS compliant. Dimensions are 1.6mm length, 0.8mm width, and 0.8mm depth.
Package0603
Resistance100R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603JR-07100RL technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin, Matte
Depth
0.8mm
Features
Moisture Resistant
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Military Standard
Not
Number of Terminations
2
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
100R
Resistance Tolerance
5%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
RC
Size Code
0603
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Yageo RC0603JR-07100RL Datasheet
Download the complete datasheet for Yageo RC0603JR-07100RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

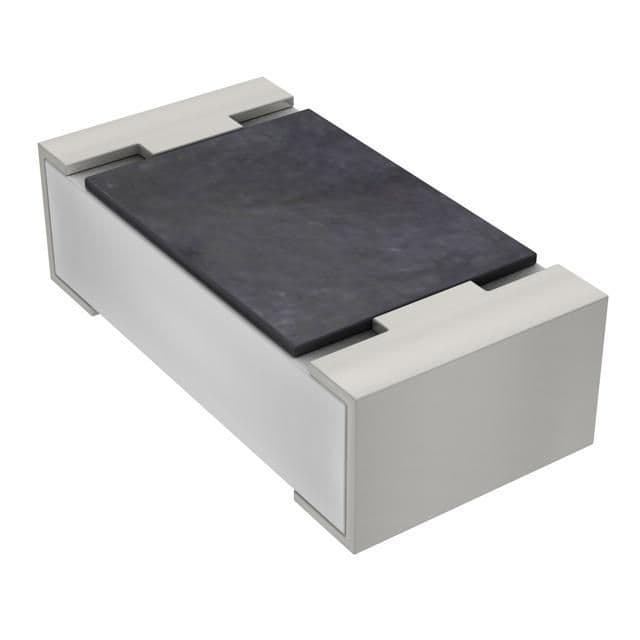

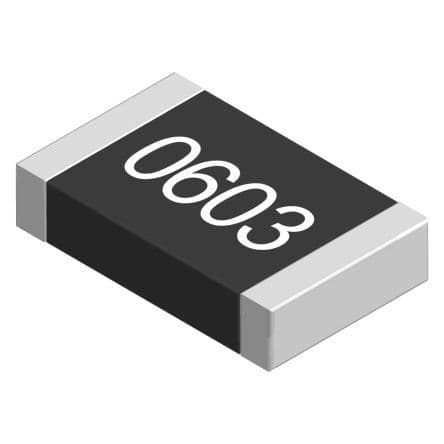

Product Images
