Technical Specifications
Yageo RC0603JR-0716RL technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Contact Plating
Tin, Matte
Features
Moisture Resistant
Height
0.022inch
Lead Free
Lead Free
Length
0.063inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Resistance
16R
RoHS Compliant
Yes
Series
RC
Size Code
0603
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Yageo RC0603JR-0716RL Datasheet
Download the complete datasheet for Yageo RC0603JR-0716RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

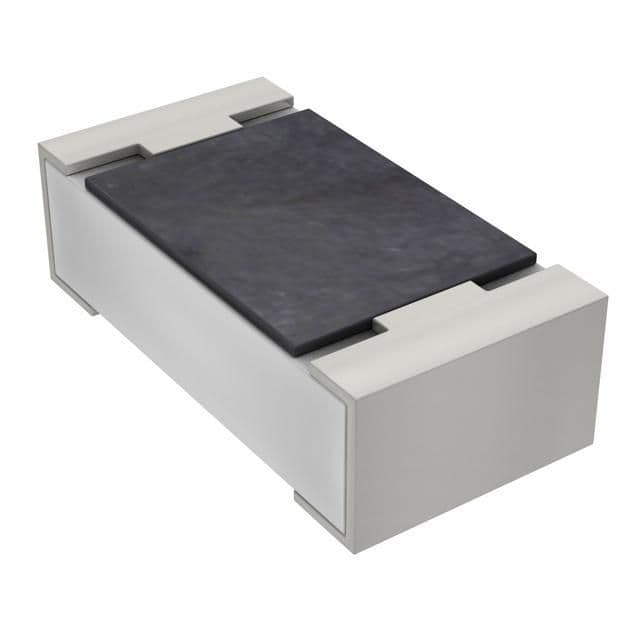

Product Images
