Thick film chip resistor, 560 Ohm resistance with 5% tolerance. Features 0.1W power rating, 50V voltage rating, and operates across a -55°C to 155°C temperature range. Housed in a compact 0603 (1608 metric) SMD/SMT package, this moisture-resistant component is lead-free and RoHS compliant.
Package0603
Resistance560R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603JR-07560RL technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Features | Moisture Resistant |
| Height | 0.022inch |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 560R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0603 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603JR-07560RL Datasheet
Download the complete datasheet for Yageo RC0603JR-07560RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

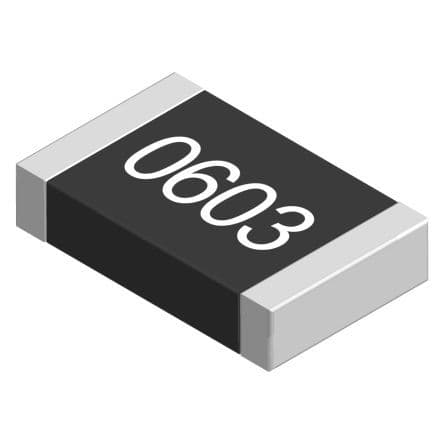

Product Images
