This 1uF radial aluminum electrolytic capacitor features a 5mm diameter and 11mm height, with a 20% tolerance. It has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. The capacitor is designed for through-hole mounting and has a ripple current of 15mA.
PackageRadial
Capacitance1uF
MountingThrough Hole
Quick Jump:
Technical Specifications
Yageo SE100M1R00AZF-0511 technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Height | 11mm |
| Lead Pitch | 2.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Radiation Hardening | No |
| Ripple Current | 15mA |
| Termination | Radial |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Yageo SE100M1R00AZF-0511 Datasheet
Download the complete datasheet for Yageo SE100M1R00AZF-0511 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

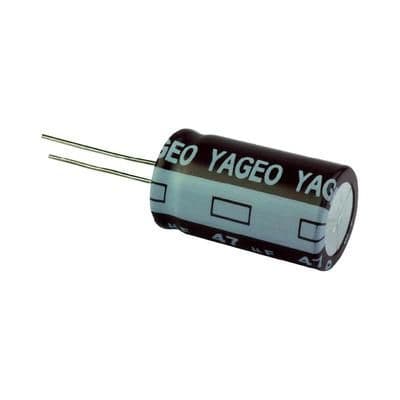

Product Images
