Surface mount resistor array featuring an isolated circuit type with 4 independent resistor elements. Each resistor offers a 4.7kΩ resistance with a 5% tolerance, rated for 62.5mW power dissipation per element and a 50V working voltage. The component is housed in a compact 1206 (3216 Metric) case code, measuring 0.126 inches in length, 0.063 inches in width, and 0.028 inches in height. Operating across a temperature range of -55°C to 155°C, this RoHS compliant component is suitable for demanding applications.
Package0603
Resistance4.7kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo TC164-JR-074K7L technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 0603 |
| Circuit Type | Isolated |
| Height | 0.028inch |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Contacts | 8 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 62.5mW |
| Power Per Element | 62.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 4.7kR |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | TC164 |
| Size Code | 0603 |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Width | 0.063inch |
| Working Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Yageo TC164-JR-074K7L Datasheet
Download the complete datasheet for Yageo TC164-JR-074K7L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

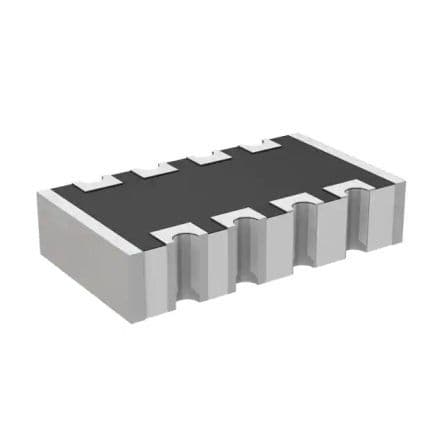

Product Images
