Surface mount resistor network featuring 4 isolated elements, each with a resistance of 56 Ohms and a 5% tolerance. This component utilizes thick film technology and is housed in a compact 0402 (1005 metric) package. It offers a maximum power dissipation of 63mW per package and 62.5mW per element, with a voltage rating of 25V. Operating across a temperature range of -55°C to 155°C, this RoHS compliant component is designed for reliable performance.
Package0402
Resistance56R
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo YC124-JR-0756RL technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Circuit Type
Isolated
Height
0.022inch
Lead Free
Lead Free
Length
0.079inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Circuits
4
Number of Contacts
8
Number of Elements
4
Number of Resistors
4
Package Quantity
1
Packaging
Cut Tape
Power Dissipation
63mW
Power Per Element
62.5mW
Reach SVHC Compliant
Unknown
Resistance
56R
Resistance Tolerance
5%
RoHS Compliant
Yes
Series
YC124
Technology
THICK FILM
Tolerance
5%
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.039inch
Compliance
RoHS
Compliant
Datasheet
Yageo YC124-JR-0756RL Datasheet
Download the complete datasheet for Yageo YC124-JR-0756RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

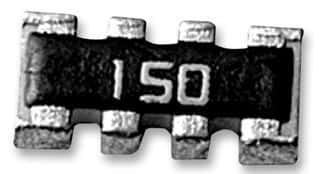

Product Images
