Technical Specifications
Yuasa NP1.2-6 technical specifications.
General
Capacity
1.2ah
Chemistry/Technology
Lead Acid
Depth
25mm
Height
54.5mm
Length
97mm
Life (Hours)
3Hour
Material
Lead, Glass fibre
Max Charge Current
300mA
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Output Voltage
6V
Reach SVHC Compliant
No
Termination
Blade Terminal
DC Rated Voltage
6V
Weight
0.31kg
Width
25mm
Compliance
RoHS
Compliant
Datasheet
Yuasa NP1.2-6 Datasheet
Download the complete datasheet for Yuasa NP1.2-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

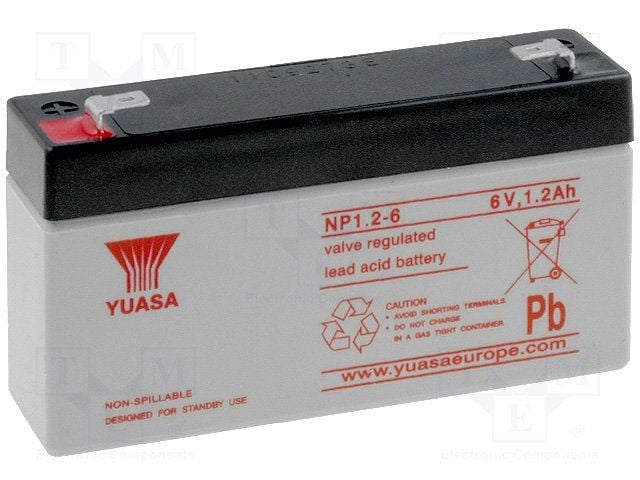

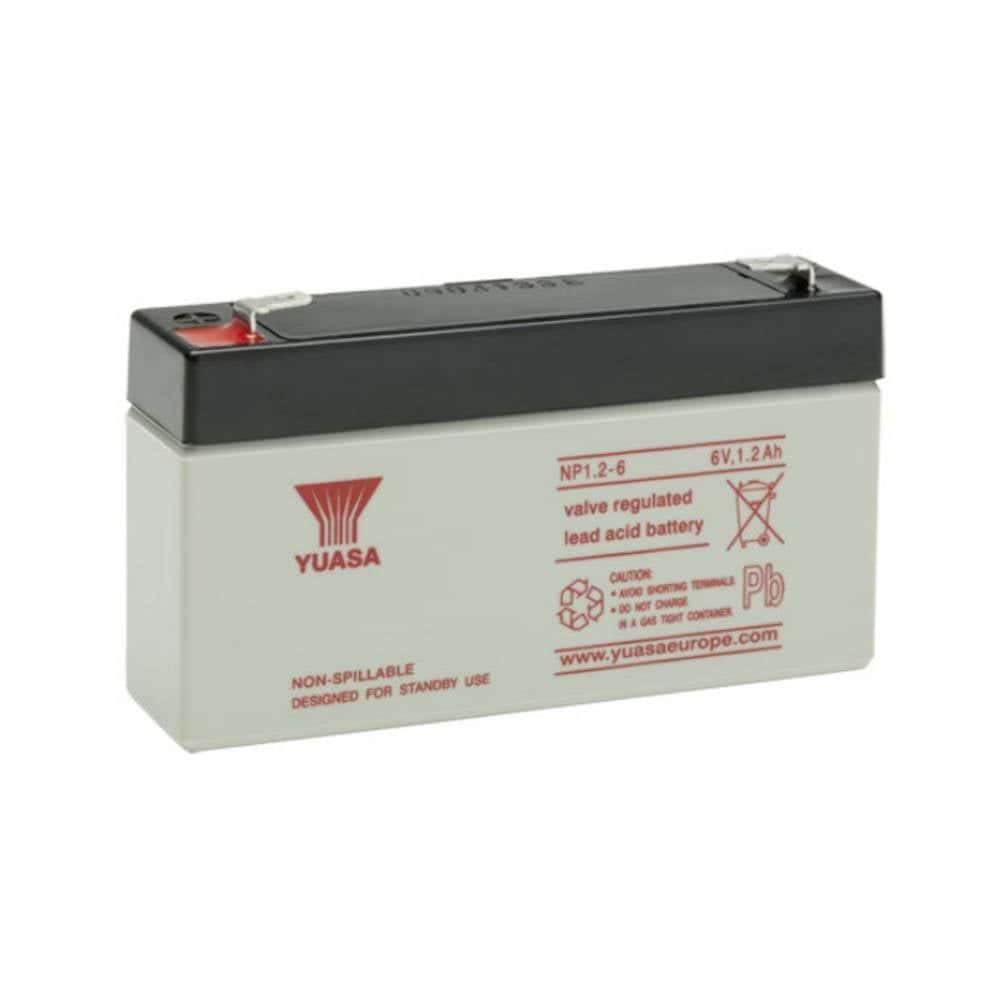

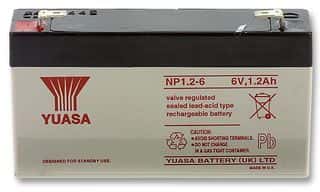

Product Images
