Yuasa
NP10-6

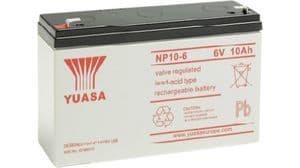

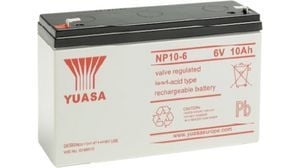

YUASA NP10-6 Rechargeable Battery, NP Series, Valve Regulated, Single Cell, Lead Acid, 10 Ah, 6 V, Quick Connect
Voltage6V
Storage10ah
MountingDesktop
Quick Jump:
Technical Specifications
Yuasa NP10-6 technical specifications.
General
Battery Type
SECONDARY
Capacity
10ah
Chemistry/Technology
Lead Acid
Height
97.5mm
Length
151mm
Life (Hours)
3Hour
Material
Lead, Glass fibre
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Desktop
Reach SVHC Compliant
No
Shape
Rectangular
Termination
Blade Terminal
Voltage
6V
DC Rated Voltage
6V
Weight
1.93kg
Width
50mm
Compliance
RoHS
Compliant
Datasheet
Yuasa NP10-6 Datasheet
Download the complete datasheet for Yuasa NP10-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
