Yuasa
NP2.3-12

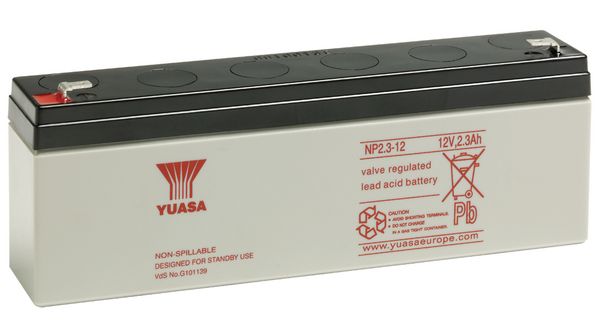

YUASA NP2.3-12 Rechargeable Battery, NP Series, Valve Regulated, Single Cell, Lead Acid, 2.3 Ah, 12 V
Storage2.3ah
MountingSealed
Quick Jump:
Technical Specifications
Yuasa NP2.3-12 technical specifications.
General
Capacity
2.3ah
Chemistry/Technology
Lead Acid
Height
64mm
Length
178mm
Life (Hours)
3Hour
Material
Lead, Glass fibre
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Sealed
Reach SVHC Compliant
No
Termination
Tab
Weight
950g
Width
34mm
Compliance
RoHS
Compliant
Datasheet
Yuasa NP2.3-12 Datasheet
Download the complete datasheet for Yuasa NP2.3-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

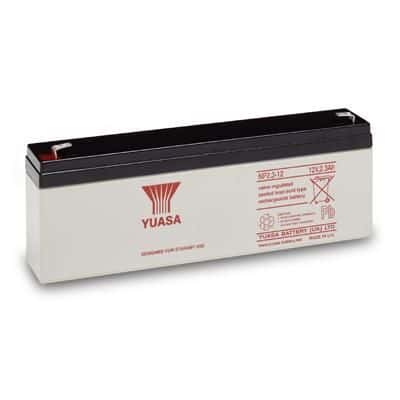

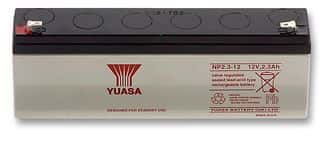

Product Images
