Yuasa
NP7-12

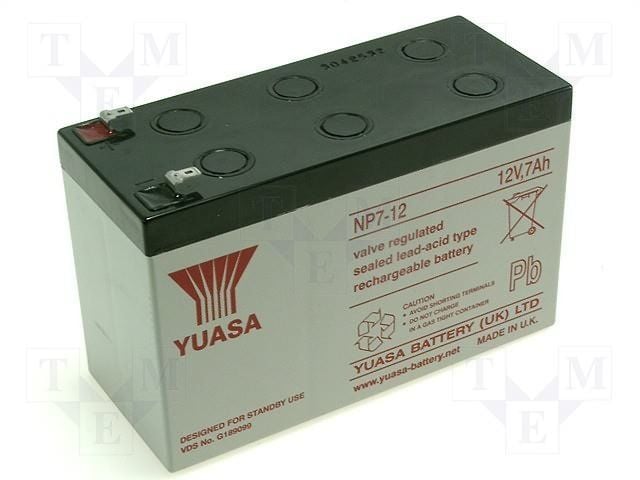

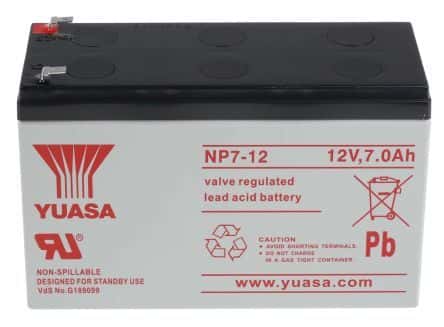

YUASA NP7-12 Rechargeable Battery, NP Series, Valve Regulated, Single Cell, Lead Acid, 7 Ah, 12 V, Quick Connect
Storage7ah
Quick Jump:
Technical Specifications
Yuasa NP7-12 technical specifications.
General
Capacity
7ah
Chemistry/Technology
Lead Acid
Height
97.5mm
Length
151mm
Life (Hours)
3Hour
Material
Lead, Glass fibre
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Reach SVHC Compliant
No
Termination
Tab
DC Rated Voltage
12V
Weight
2.65kg
Width
65mm
Compliance
RoHS
Compliant
Datasheet
Yuasa NP7-12 Datasheet
Download the complete datasheet for Yuasa NP7-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
