20-position, 2-row male SCSI connector with 2.54mm pitch and straight orientation. Features shielded, cable mount design with solder cup termination for 20 terminals. Constructed with copper alloy, gold, and copper contacts, gold plated, and a black steel housing. Rated for 1A current, operating temperature range of -55°C to 105°C, and UL94 V-0 flammability. RoHS compliant and lead-free.
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
3M 10120-3000PE technical specifications.
General
Approvals
UL
Color
Black
Contact Material
Copper Alloy, Gold, Copper
Contact Plating
Gold
Current Rating
1A
Depth
19.3mm
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
22mm
Material
Steel
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
20
Number of Ports
1
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
101, Mini D Ribbon (MDR)
Termination
Solder
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
3M 10120-3000PE Datasheet
Download the complete datasheet for 3M 10120-3000PE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

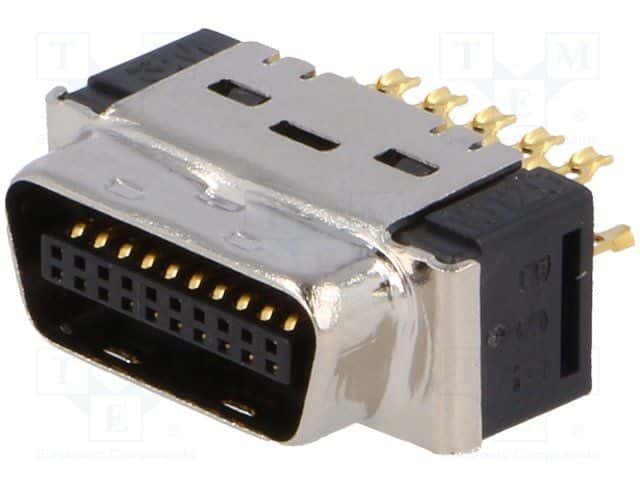

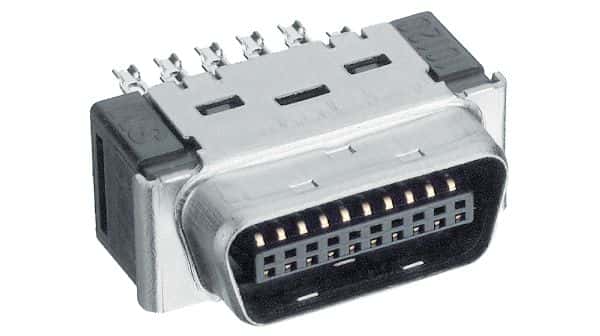

Product Images
