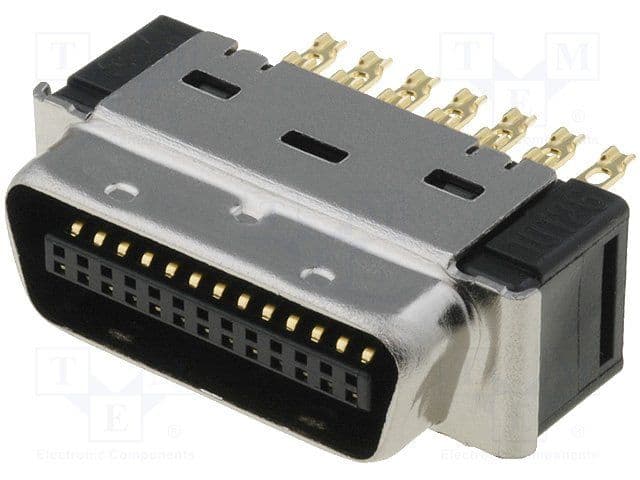

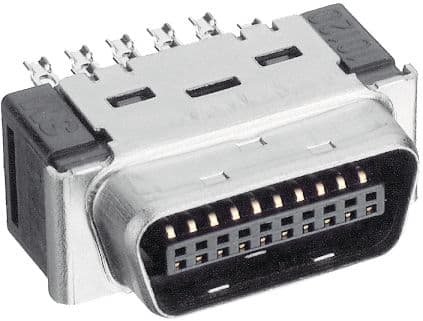

26-position, 2-row male D-subminiature connector with solder termination. Features a shielded, straight, free-hanging/cable mount design in black housing. Constructed with copper alloy contacts plated in gold, and a steel shell. Rated for 1A current and operates between -55°C and 105°C, with UL and UL94 V-0 flammability ratings. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 10126-3000PE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Color | Black |
| Contact Material | Copper Alloy, Gold, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 19.3mm |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 25.8mm |
| Material | Steel |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 26 |
| Number of Ports | 1 |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 101 |
| Termination | Solder |
| Width | 9.1mm |
| RoHS | Compliant |
