This 14-position shielded connector tool features a beige housing with nickel plating, made from steel and plastic materials. It has a straight orientation and is lead-free. The tool is packaged in bulk quantities of 100 and has a weight of 1lb. The connector tool is made from ABS and has a flammability rating of UL94 V-0.
Quick Jump:
Technical Specifications
3M 10314-3210-000 technical specifications.
General
| Body Material | ABS |
| Color | Beige |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Beige |
| Lead Free | Lead Free |
| Material | Steel, Plastic, Metal |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Nickel |
| Reach SVHC Compliant | Unknown |
| Series | 103 |
| Shell Material | Steel |
| Shielding | Shielded |
| Strain Relief | Yes (With) |
| Weight | 1lb |
| Wire/Cable Diameter | 6.3mm |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
3M 10314-3210-000 Datasheet
Download the complete datasheet for 3M 10314-3210-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

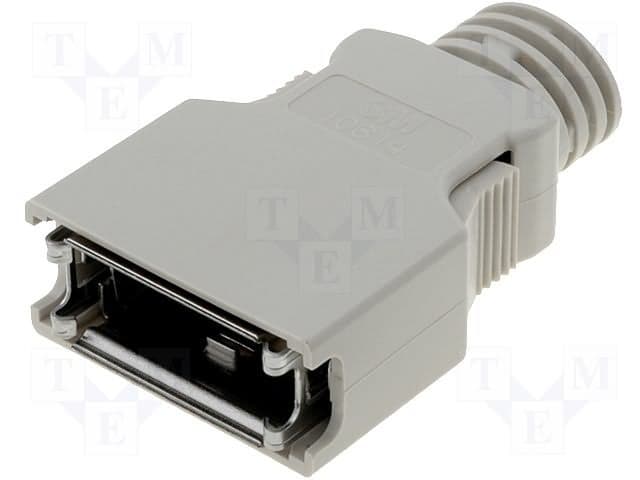

Product Images
