20-position, straight orientation connector accessory featuring a plastic junction shell. Constructed with a metal and plastic body, it includes a metal package/case and ABS shell material. Rated UL94 V-0 for flammability, this unshielded component operates between -20°C and 85°C and is RoHS compliant. It accommodates round wire/cable up to 0.472 inches in diameter and includes strain relief.
PackageMetal
Quick Jump:
Technical Specifications
3M 10320-52A0-008 technical specifications.
General
| Body Material | Metal, Plastic |
| Package/Case | Metal |
| Color | Black |
| Flammability Rating | UL94 V-0 |
| Material | Glass, Polyester, PBT |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Orientation | Straight |
| Package Quantity | 100 |
| Plating | Plastic |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 103 |
| Shell Material | ABS |
| Shielding | Unshielded |
| Strain Relief | Yes (With) |
| Weight | 1lb |
| Wire/Cable Diameter | 0.472inch |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
3M 10320-52A0-008 Datasheet
Download the complete datasheet for 3M 10320-52A0-008 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

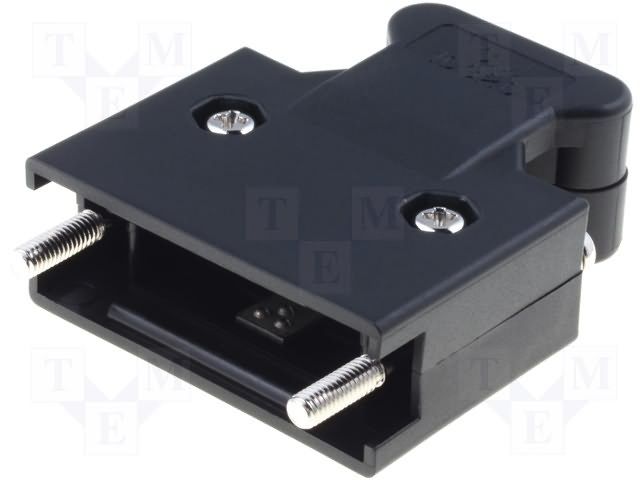

Product Images
