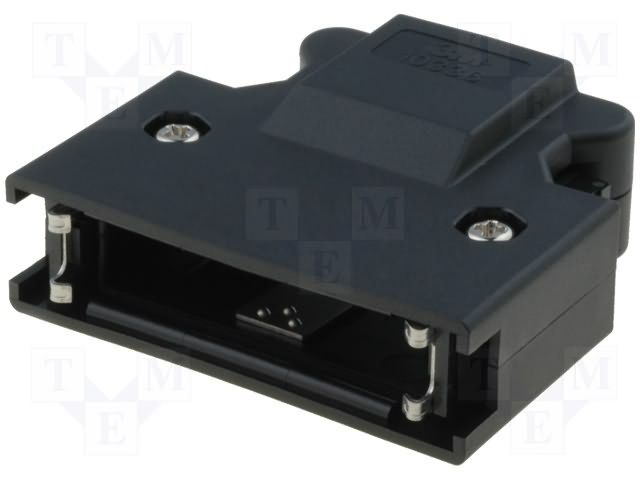

Straight, 36-position connector accessory featuring a glass-filled polyester PBT backshell. Constructed from glass, polybutylene, PBT, and polyester, this unshielded component offers a temperature range of -20°C to 85°C. It includes strain relief and is rated UL94 V-0 for flammability. Designed for round wire/cable with a 0.05-inch diameter, it is RoHS compliant and lead-free.
Quick Jump:
Technical Specifications
3M 10336-52F0-008 technical specifications.
General
| Body Material | Glass, Polyester, PET |
| Color | Black |
| Depth | 39mm |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 43.5mm |
| Material | Glass, Polybutylene, PBT, Polyester |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Number of Contacts | 36 |
| Number of Positions | 36 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 103 |
| Shell Material | Glass |
| Shielding | Unshielded |
| Strain Relief | Yes (With) |
| Weight | 1lb |
| Wire/Cable Diameter | 0.05inch |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
3M 10336-52F0-008 Datasheet
Download the complete datasheet for 3M 10336-52F0-008 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
