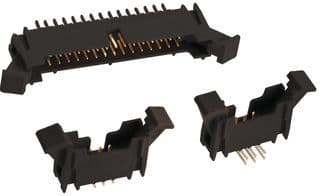

50-position, 2-row, 2mm pitch shrouded header with straight, through-hole mounting. Features male pin copper alloy contacts with gold plating, rated for 1A current. Black housing, UL94 V-0 flammability, and lead-free construction ensure reliable performance.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 155250-6302-RB technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.15inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 6.27mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Current Rating | 1A |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Pitch | 2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | 1552 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M 155250-6302-RB Datasheet
Download the complete datasheet for 3M 155250-6302-RB to view detailed technical specifications.
