20-conductor, 10-pair flat flex cable featuring twisted pair construction. This unshielded cable utilizes copper conductors with 7 strands of 36 AWG per conductor, offering a 1.27mm pitch and 25.4mm width. Rated for 300V, it operates within a temperature range of -20°C to 105°C and boasts a characteristic impedance of 122 Ohms. The cable is constructed with PVC insulation and jacket, is UL approved, and comes in a 100-foot roll.
Package015
Capacitance52.2pF
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 1700/20 technical specifications.
General
Approvals
UL
Capacitance
52.2pF
Package/Case
015
Characteristic Impedance
122R
Color
Multiple
Conductor Material
Copper
Impedance
122R
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
20
Number of Cores
20
Number of Pairs
10
Number of Strands
7
Number of Ways
20
Packaging
Roll
Pitch
1.27mm
Reach SVHC Compliant
Unknown
Shielding
Unshielded
Stranding
7 x 36
Voltage Rating
300V
DC Rated Voltage
300V
Weight
13lb
Width
25.4mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat Flex, Twisted Pair, Flat
Compliance
RoHS
Compliant
Datasheet
3M 1700/20 Datasheet
Download the complete datasheet for 3M 1700/20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

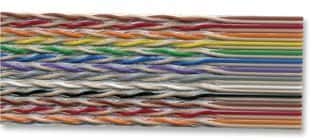

Product Images
