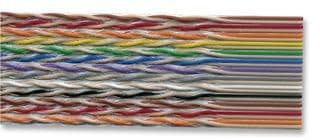

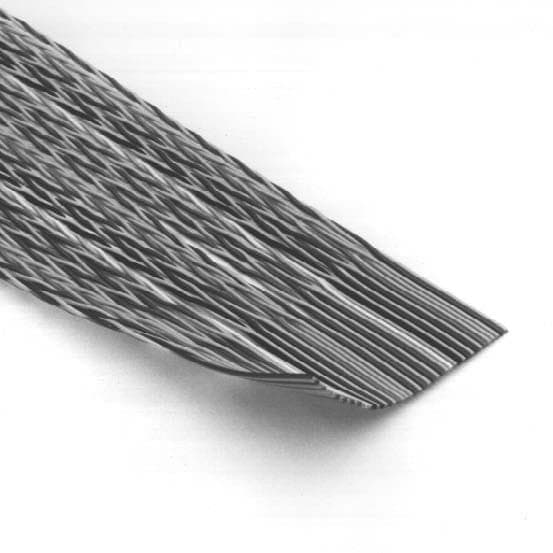

50-conductor, 28AWG twisted pair flat cable featuring 7x36 stranded tinned copper conductors with PVC insulation. This cable offers a characteristic impedance of 122 Ohms, a capacitance of 52.2pF, and a voltage rating of 300V. Designed for general applications, it operates within a temperature range of -20°C to 80°C and is UL approved. The cable is 100 feet in length with a 1.27mm pitch and a width of 63.5mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 1700/50 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Capacitance | 52.2pF |
| Characteristic Impedance | 122R |
| Color | Multiple |
| Conductor Material | Copper |
| Impedance | 122R |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 50 |
| Number of Cores | 50 |
| Number of Pairs | 25 |
| Number of Strands | 7 |
| Number of Ways | 50 |
| Pitch | 1.27mm |
| Reach SVHC Compliant | Unknown |
| Stranding | 7X36 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 63.5mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Twisted Pair, Flat, Flat Flex |
| RoHS | Compliant |
