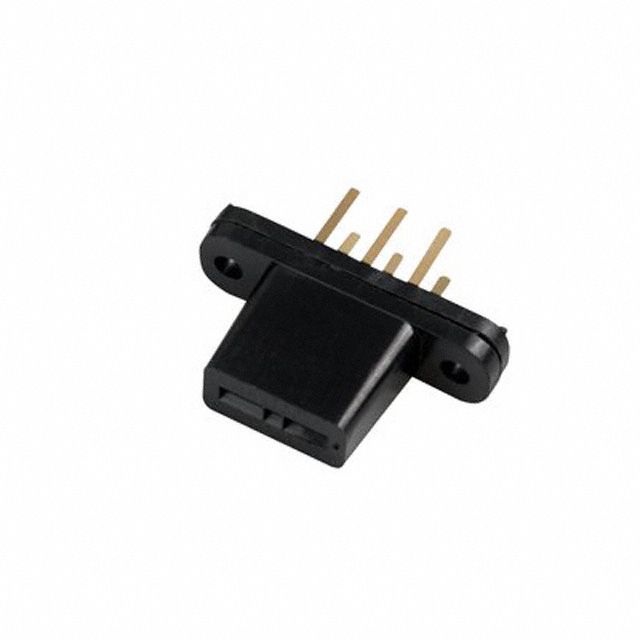

Through-hole mount IC socket with 3 contacts, designed for TO-66 packages. Features gold-plated copper contacts for reliable mating and a 1A current rating. This female, straight-orientation socket offers a 5.94mm pitch and 8.23mm row spacing, with a 100V voltage rating. It is RoHS compliant and has a UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 203-2737-55-1102 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M 203-2737-55-1102 technical specifications.
| Package/Case | TO-66 |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 10.41mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Lead Free | Contains Lead |
| Max Current Rating | 1A |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Ports | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 5.94mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 8.23mm |
| Series | Textool™ |
| Termination | Solder |
| Voltage Rating | 100V |
| Weight | 1lb |
| RoHS | Compliant |
