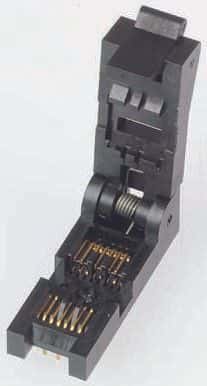

Through-hole mount IC socket featuring 14 contacts in a straight, 2-row configuration. Designed for SOIC packages with a 1.27mm pitch and 3.81mm row spacing. Offers gold-plated copper contacts for reliable mating and a current rating of 1A. Operates across a wide temperature range from -55°C to 150°C, with a UL94 V-0 flammability rating and lead-free construction.
PackageSOIC
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 214-7390-55-1902 technical specifications.
General
| Package/Case | SOIC |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 36.8mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Material | Polyethersulfone |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3.81mm |
| Series | Textool™ |
| Termination | Solder |
| Weight | 1lb |
Compliance
| RoHS | Compliant |
Datasheet
3M 214-7390-55-1902 Datasheet
Download the complete datasheet for 3M 214-7390-55-1902 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
