14-position, 2-row male pin header for board-to-board applications. Features a 2.54mm pitch and straight, through-hole mounting with solder termination. Constructed with a copper alloy contact material and gold plating for mating, with tin and gold plating on the contacts. The grey housing is made of glass insulation and rated UL94 V-0 for flammability. Offers a 1.75A current rating and 1kV voltage rating.
Voltage Rating1kV
Current Rating1.75A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 2514-6002UB technical specifications.
General
| Approvals | UL |
| Color | Grey |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Tin, Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1.75A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Contains Lead |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 616 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Series | 2500 |
| Termination | Solder |
| Voltage Rating | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
3M 2514-6002UB Datasheet
Download the complete datasheet for 3M 2514-6002UB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

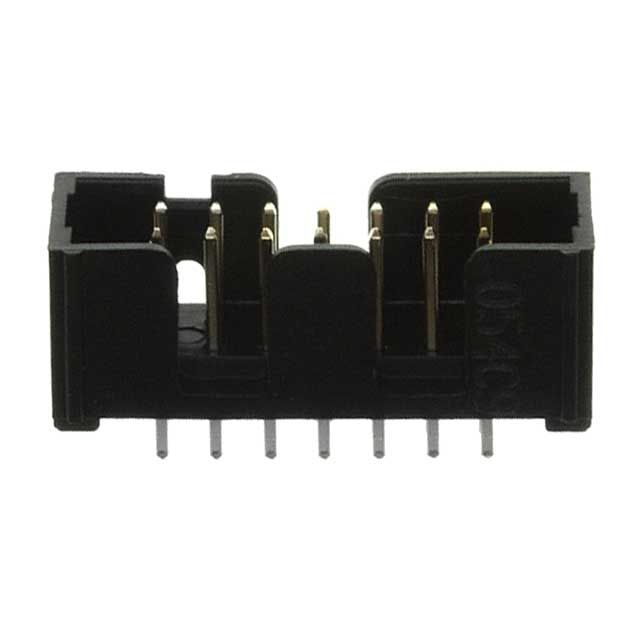

Product Images
