Straight shrouded header with 6 positions and 2 rows, featuring a 2.54mm pitch. Male pin contacts are brass with gold plating, rated for 1A current and a mating length of 0.236 inches. The black housing is designed for through-hole mounting with solder termination, operating within a temperature range of -55°C to 105°C.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 30306-6002HB technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.236inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 8.78mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 15.4mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | 303 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M 30306-6002HB Datasheet
Download the complete datasheet for 3M 30306-6002HB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

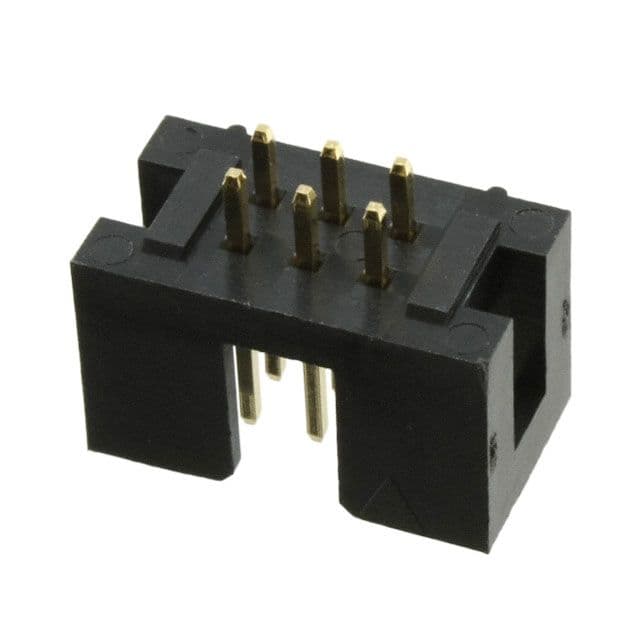

Product Images
