20-position, 2-row shrouded header with straight, through-hole mounting and solder termination. Features gold-plated brass male pin contacts with a 2.54mm pitch and 0.1-inch row spacing. Operates within a temperature range of -55°C to 105°C, with a current rating of 1A. The black PBT housing is UL94 V-0 flammability rated and lead-free.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 30320-6002HB technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Brass |
| Contact Mating Length | 0.236inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 8.78mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 33mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | 303 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M 30320-6002HB Datasheet
Download the complete datasheet for 3M 30320-6002HB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

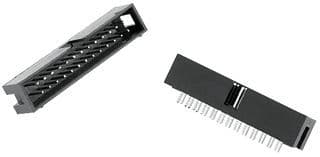

Product Images
