10-conductor flat cable featuring 28AWG stranded copper conductors with tin plating. This unshielded cable utilizes PVC insulation and jacket, offering a 1.27mm pitch and a 300V voltage rating. Operating temperature range is -20°C to 105°C, available on a 91.44m roll.
Package300
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3302/10-300 technical specifications.
General
Cable Pitch
1.27mm
Package/Case
300
Color
Multiple
Conductor Material
Copper
Contact Plating
Tin
Depth
12.7mm
Insulation Material
PVC
Jacket Material
PVC
Length
300foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
10
Package Quantity
1
Packaging
Roll
Pitch
0.05inch
Ribbon Thickness
0.042inch
Ribbon Width
0.5inch
RoHS Compliant
Yes
Series
3302
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Twisted Pair
Compliance
RoHS
Compliant
Datasheet
3M 3302/10-300 Datasheet
Download the complete datasheet for 3M 3302/10-300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

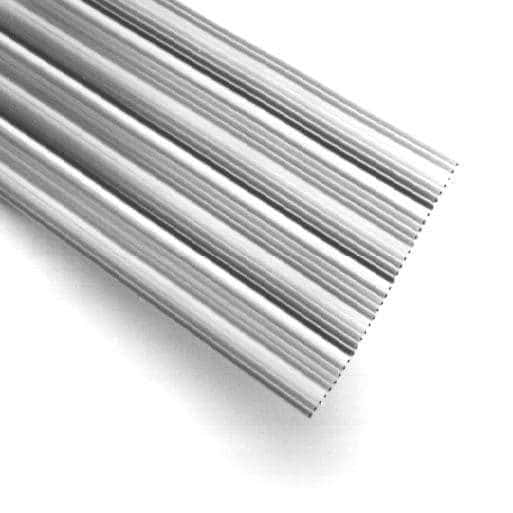

Product Images
