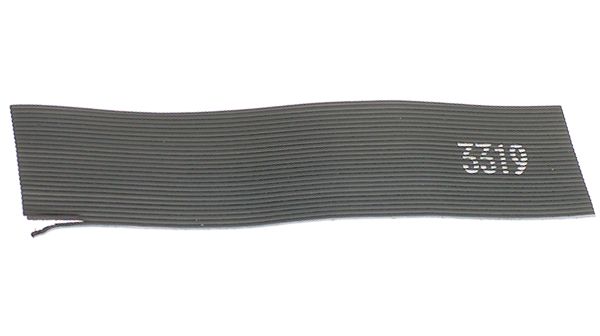

40-conductor, 1.27mm pitch ribbon cable featuring 28AWG silver conductors with 19 strands per conductor. This unshielded cable offers a characteristic impedance of 171 Ohms and a nominal impedance of 107 Ohms, with a capacitance of 44.608 pF. Constructed with a PVC jacket, it operates within a temperature range of -20°C to 105°C and carries a voltage rating of 50V (DC rated voltage 300V). The cable is UL approved, RoHS compliant, and meets UL VW-1 flammability standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 3319/40 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M 3319/40 technical specifications.
| Approvals | UL |
| Cable Pitch | 1.27mm |
| Capacitance | 44.608pF |
| Characteristic Impedance | 171R |
| Color | Black, Red |
| Conductor Material | Silver |
| Contact Plating | Silver |
| Flammability Rating | UL VW-1 |
| Impedance | 107R |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 40 |
| Number of Positions | 40 |
| Number of Strands | 19 |
| Number of Ways | 40 |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 19X40 |
| Voltage Rating | 50V |
| DC Rated Voltage | 300V |
| Width | 50.8mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Ribbon, Flat |
| RoHS | Compliant |
