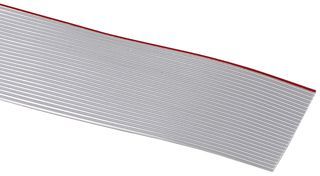

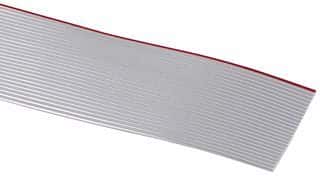

20-conductor flat cable featuring 28AWG stranded copper conductors with a 1.27mm pitch. This unshielded cable utilizes PVC insulation and jacket, operating within a temperature range of -20°C to 105°C and rated for 300V. The cable is grey in color with a red first conductor mark, supplied in a 300-foot length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 3365/20SF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M 3365/20SF technical specifications.
| Cable Pitch | 1.27mm |
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| First Conductor Mark | Red |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 300foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 20 |
| Number of Cores | 20 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 3365 |
| Shielding | Unshielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 14.4lb |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Flat, Round, Flat Flex |
| RoHS | Compliant |
