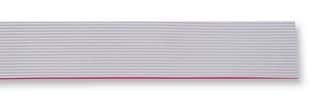

9-core, 28 AWG ribbon cable featuring round copper conductors with 7 strands per conductor. This unshielded flat flex cable offers a 1.27mm pitch and 11.43mm width, with a 300V voltage rating. Operating temperature range is -20°C to 105°C, with characteristic impedance of 172 Ohms. Available in a 100-foot roll, this grey and red cable is UL approved.
Package100
Capacitance47.4616pF
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3365-9 technical specifications.
General
Approvals
UL
Cable Pitch
1.27mm
Capacitance
47.4616pF
Package/Case
100
Characteristic Impedance
172R
Color
Grey, Red
Conductor Material
Copper
Impedance
172R
Inductance
0.49uH
Jacket Material
Polyvinyl
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
9
Number of Cores
9
Number of Strands
7
Number of Ways
9
Packaging
Roll
Pitch
1.27mm
Radiation Hardening
No
Reach SVHC Compliant
No
Shielding
Unshielded
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Width
11.43mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Ribbon, Flat, Flat Flex
Compliance
RoHS
Compliant
Datasheet
3M 3365-9 Datasheet
Download the complete datasheet for 3M 3365-9 to view detailed technical specifications.
