Jacketed flat ribbon cable, 10 core, 28 AWG, featuring a 1.27mm pitch and 70R characteristic impedance. Constructed with copper conductors and tin plating, this black cable offers a 1A current rating and operates within a -20°C to 80°C temperature range. The PVC jacket provides durability, with a 50V voltage rating and 119R impedance.
Package100
Capacitance70.5pF
Voltage Rating50V
Current Rating1A
Quick Jump:
Technical Specifications
3M 3517-10 technical specifications.
General
| Cable Pitch | 1.27mm |
| Capacitance | 70.5pF |
| Package/Case | 100 |
| Characteristic Impedance | 70R |
| Color | Black, Grey |
| Conductor Material | Copper |
| Contact Plating | Tin |
| Current Rating | 1A |
| Impedance | 119R |
| Inductance | 0.62uH |
| Jacket Material | PVC |
| Length | 300foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Moisture Sensitivity Level | 1 |
| Mount | Cable |
| Number of Conductors | 10 |
| Number of Cores | 10 |
| Number of Strands | 7 |
| Number of Ways | 10 |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| Series | 3517 |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 16mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Ribbon, Flat, Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
3M 3517-10 Datasheet
Download the complete datasheet for 3M 3517-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

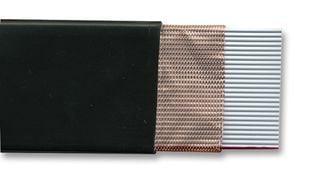

Product Images
