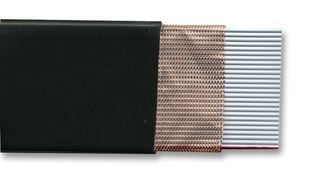

40-way screened and jacketed ribbon cable, 5 meters in length, featuring a 1.27mm pitch. Constructed with copper conductors (28AWG) and a PVC jacket, this flat flex cable offers a 1A current rating and 50V voltage rating. Key electrical specifications include 119 Ohm characteristic impedance, 70.52pF capacitance, and 0.62uH inductance. Operating temperature range is -20°C to 80°C.
Package100
Capacitance70.52pF
Voltage Rating50V
Current Rating1A
Quick Jump:
Technical Specifications
3M 3517-40 technical specifications.
General
| Cable Pitch | 1.27mm |
| Capacitance | 70.52pF |
| Package/Case | 100 |
| Characteristic Impedance | 119R |
| Color | Grey, Black |
| Conductor Material | Copper |
| Current Rating | 1A |
| Impedance | 119R |
| Inductance | 0.62uH |
| Jacket Material | PVC |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 40 |
| Number of Cores | 40 |
| Number of Strands | 7 |
| Number of Ways | 40 |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 3517 |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 54.1mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Ribbon, Flat, Flat Flex |
