50-conductor, 28AWG multi-pair cable featuring shielded, twisted pairs for enhanced signal integrity. Constructed with copper conductors and PVC insulation and jacket, this beige cable offers a 0.32-inch insulation diameter and 0.026-inch insulation thickness. Rated for 150V, it comes on a 300-foot roll and is RoHS compliant.
Voltage30V
Voltage Rating150V
MountingCable
Quick Jump:
Technical Specifications
3M 3600B/50 300 technical specifications.
General
| Color | Beige |
| Conductor Material | Copper |
| Insulation Diameter | 0.32inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.026inch |
| Jacket Material | PVC |
| Length | 300foot |
| Mount | Cable |
| Number of Conductors | 50 |
| Package Quantity | 1 |
| Packaging | Roll |
| RoHS Compliant | Yes |
| Series | 3600X |
| Shielding | Shielded |
| Stranding | 7 x 36 |
| Voltage | 30V |
| Voltage Rating | 150V |
| Weight | 26.3lb |
| Wire/Cable Diameter | 8.1mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
3M 3600B/50 300 Datasheet
Download the complete datasheet for 3M 3600B/50 300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

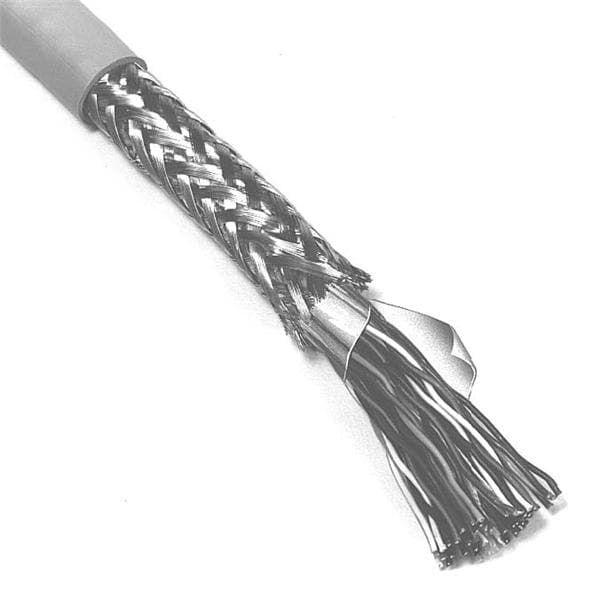

Product Images
