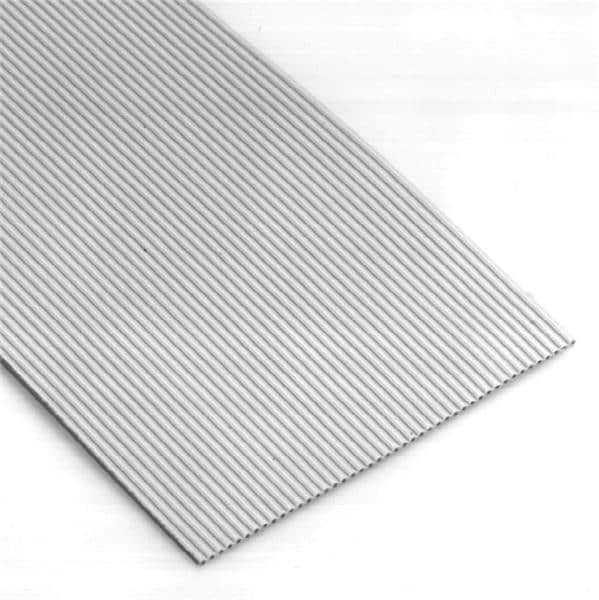

16-conductor, 28AWG flat ribbon cable featuring a 0.039-inch pitch and 0.63-inch width. Constructed with copper conductors and PVC insulation/jacket, it offers a temperature range of -20°C to 105°C and a 300V voltage rating. This unshielded cable, with a red first conductor mark, meets UL VW-1 flammability standards and is RoHS compliant. Available in bulk packaging, it measures 30 meters (98.4 feet) in length.
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3625/16 30M technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| First Conductor Mark | Red |
| Flammability Rating | UL VW-1 |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 98.4foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 16 |
| Number of Positions | 16 |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 0.039inch |
| Ribbon Thickness | 0.035inch |
| Ribbon Width | 0.63inch |
| RoHS Compliant | Yes |
| Series | 3625 |
| Shielding | Unshielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 16.4lb |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 3625/16 30M Datasheet
Download the complete datasheet for 3M 3625/16 30M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
