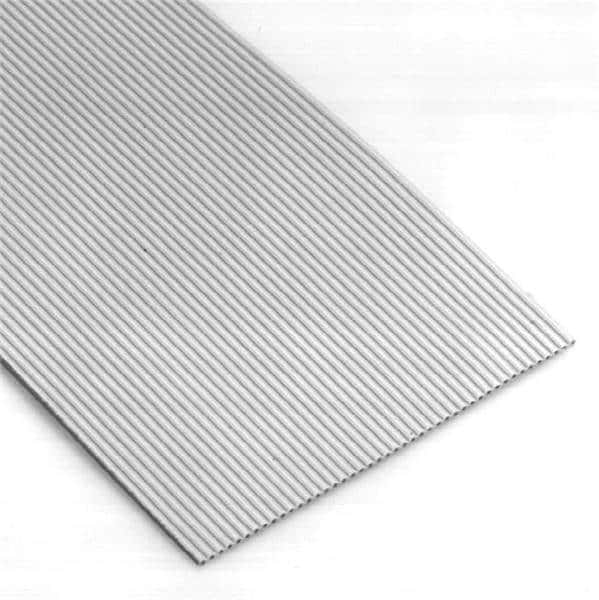

20-conductor, unshielded flat ribbon cable featuring 28AWG stranded copper conductors, each with 7 strands. This cable offers a 1mm (0.039 inch) pitch, 300V voltage rating, and a maximum operating temperature of 105°C. Constructed with PVC insulation and jacket, it has a capacitance of 54.5pF and characteristic impedance of 89 Ohms. The cable is 30 meters (98.4 feet) long, with a ribbon width of 20mm (0.787 inches) and thickness of 0.035 inches, and is supplied in bulk packaging.
Voltage300V
Capacitance54.5pF
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3625/20 30M technical specifications.
General
Cable Pitch
1mm
Capacitance
54.5pF
Characteristic Impedance
89R
Color
Grey, Red
Conductor Material
Copper
Contact Plating
Tin
First Conductor Mark
Red
Insulation Material
PVC
Jacket Material
PVC
Length
98.4foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
20
Number of Strands
7
Number of Ways
20
Package Quantity
10
Packaging
Bulk
Pitch
0.039inch
Ribbon Thickness
0.035inch
Ribbon Width
0.787inch
Series
3625
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
Weight
2.425lb
Width
20mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat
Compliance
RoHS
Compliant
Datasheet
3M 3625/20 30M Datasheet
Download the complete datasheet for 3M 3625/20 30M to view detailed technical specifications.
