9-conductor shielded ribbon cable with 1.27mm pitch, featuring a black jacket and gray conductors. Constructed with copper conductors and PVC insulation/jacket, this cable operates from -20°C to 105°C with a 300V rating. The 28AWG conductors are stranded 7 x 36, and the cable is supplied on a 25-foot spool.
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3659/09-100SF technical specifications.
General
| Cable Pitch | 1.27mm |
| Color | Black, Grey |
| Conductor Material | Copper |
| Depth | 10.2mm |
| Features | Shielded |
| First Conductor Mark | Red |
| Halogen Free | Not Halogen Free |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 25foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 9 |
| Number of Positions | 9 |
| Outside Diameter | 6.9mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| Ribbon Width | 0.402inch |
| Series | 3659 |
| Shielding | Shielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 6.5lb |
| Width | 10.2mm |
| Wire/Cable Diameter | 6.9mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 3659/09-100SF Datasheet
Download the complete datasheet for 3M 3659/09-100SF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

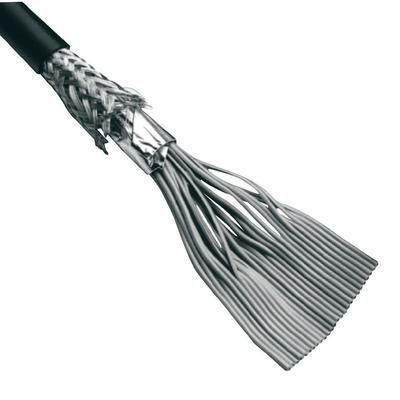

Product Images
