26-conductor, 28AWG stranded copper discrete wire cable with a 1.27mm pitch. Features PVC insulation and jacket, shielded construction, and a black/grey color scheme with a red first conductor mark. Rated for 300V and operates between -20°C and 105°C. Supplied on a 100-foot spool.
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3659/26-100SF technical specifications.
General
| Cable Pitch | 1.27mm |
| Color | Black, Grey |
| Conductor Material | Copper |
| Depth | 31.8mm |
| Features | Shielded |
| First Conductor Mark | Red |
| Halogen Free | Not Halogen Free |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 26 |
| Number of Positions | 26 |
| Outside Diameter | 9.4mm |
| Packaging | Spool |
| Radiation Hardening | No |
| Series | 3659 |
| Shielding | Shielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 10.3lb |
| Width | 31.8mm |
| Wire/Cable Diameter | 9.4mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 3659/26-100SF Datasheet
Download the complete datasheet for 3M 3659/26-100SF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

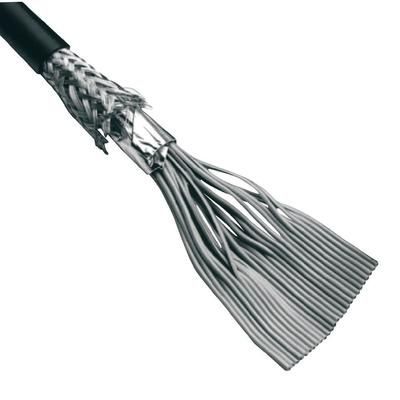

Product Images
