Technical Specifications
3M 3659/26 300 technical specifications.
General
| Color | Black, Grey |
| Conductor Material | Copper |
| Depth | 31.8mm |
| First Conductor Mark | Red |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 300foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 26 |
| Packaging | Roll |
| Pitch | 0.05inch |
| RoHS Compliant | Yes |
| Series | 3659 |
| Shielding | Shielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire/Cable Diameter | 9.4mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 3659/26 300 Datasheet
Download the complete datasheet for 3M 3659/26 300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

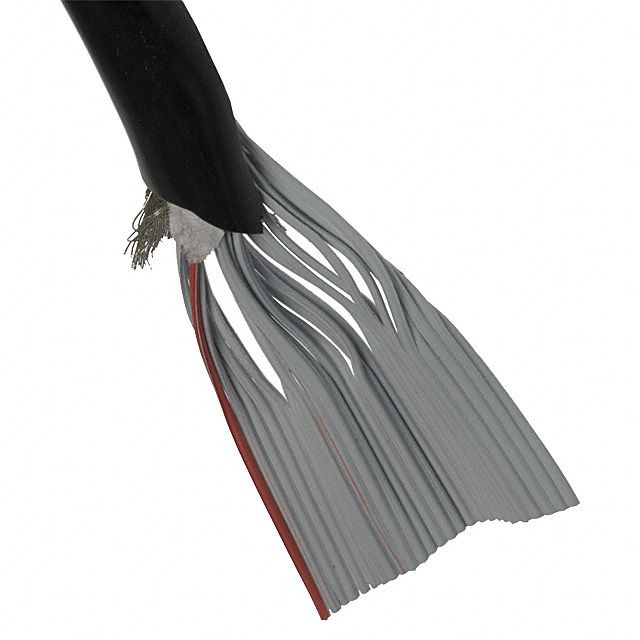

Product Images
