3-position, 1-row, 2mm pitch wire-to-board socket header with straight, through-hole mounting. Features copper alloy contacts with gold plating for mating, a 3A current rating, and a 32V voltage rating. The black nylon housing is UL94 V-0 rated for flammability and operates within a -20°C to 85°C temperature range.
Voltage Rating32V
Current Rating3A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
3M 37203-62B3-003PL technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Silver, Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 6.4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Material | Nylon |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Board |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 372 |
| Termination | Solder |
| Voltage Rating | 32V |
| Voltage Rating (AC) | 32V |
Compliance
| RoHS | Compliant |
Datasheet
3M 37203-62B3-003PL Datasheet
Download the complete datasheet for 3M 37203-62B3-003PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

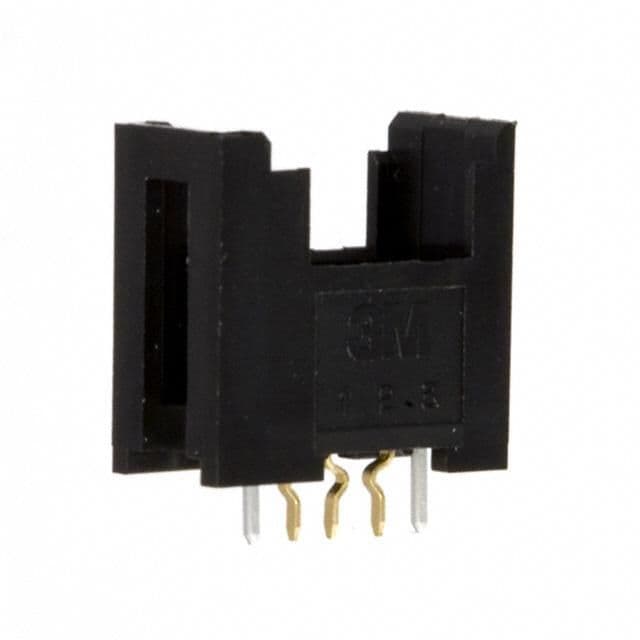

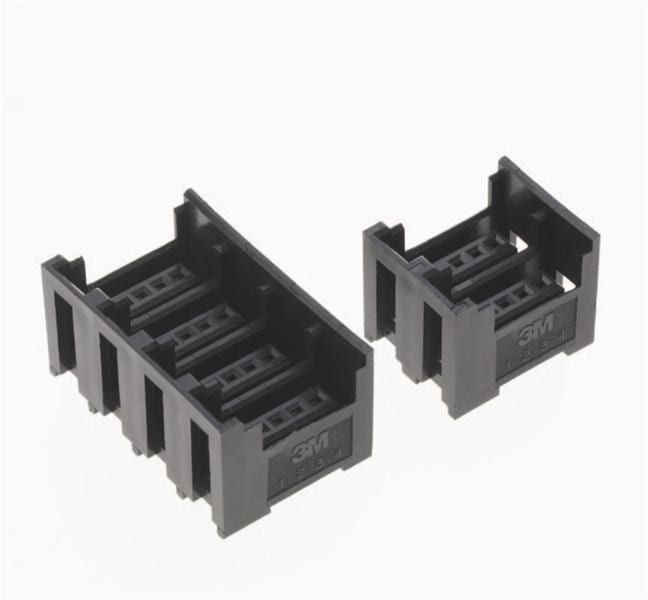

Product Images
