Technical Specifications

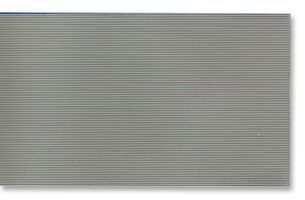

3M 3754/26 technical specifications.
General
| Package/Case | 100 |
| Color | Grey, Red |
| Conductor Material | Copper |
| Depth | 16.51mm |
| Jacket Material | PVC |
| Length | 300foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 26 |
| Packaging | Roll |
| Pitch | 0.025inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Wire/Cable Gauge | 30AWG |
| Wire/Cable Type | Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 3754/26 Datasheet
Download the complete datasheet for 3M 3754/26 to view detailed technical specifications.
