20-conductor, 20-position flat ribbon cable featuring 28AWG stranded copper conductors (7 x 36) with a 0.05-inch pitch. Insulated and jacketed with black PVC, this unshielded cable offers a 300V voltage rating and operates between -20°C and 80°C. The cable is supplied in 100-foot bulk packaging.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3759/20100SF technical specifications.
General
| Package/Case | 100 |
| Color | Black, Grey |
| Conductor Material | Copper |
| Depth | 25.37mm |
| First Conductor Mark | Red |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 20 |
| Number of Positions | 20 |
| Packaging | Bulk |
| Series | 3759 |
| Shielding | Unshielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 6.7lb |
| Wire/Cable Diameter | 7.6mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 3759/20100SF Datasheet
Download the complete datasheet for 3M 3759/20100SF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

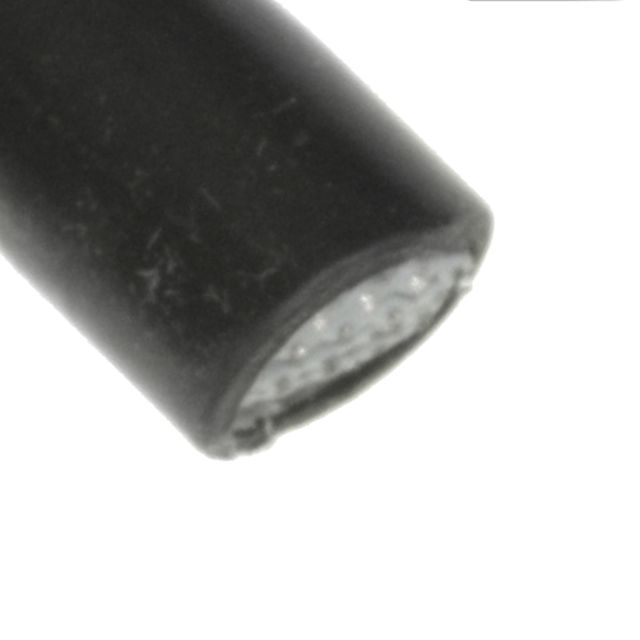

Product Images
